20,000 lb Capacity (10 Tons) Steel Portable Mobile Forklift Yard or Dock Ramp

$15,999.00 $9,999.00

In Stock 2-3 Day lead time! This steel yard ramp is designed for loading and unloading a truck, trailer, or railcar when dock space isn't available. Manufactured from durable steel, this...

SKU: STLR10TN
Availability : In Stock Pre order Out of stock
Categories: Yard Ramps
Tags: Ramps
Description

In Stock 2-3 Day lead time!

This steel yard ramp is designed for loading and unloading a truck, trailer, or railcar when dock space isn't available. Manufactured from durable steel, this yard ramp has a 10 Ton (20,000 lb) weight capacity and measures 37' L x 6' 10"W.

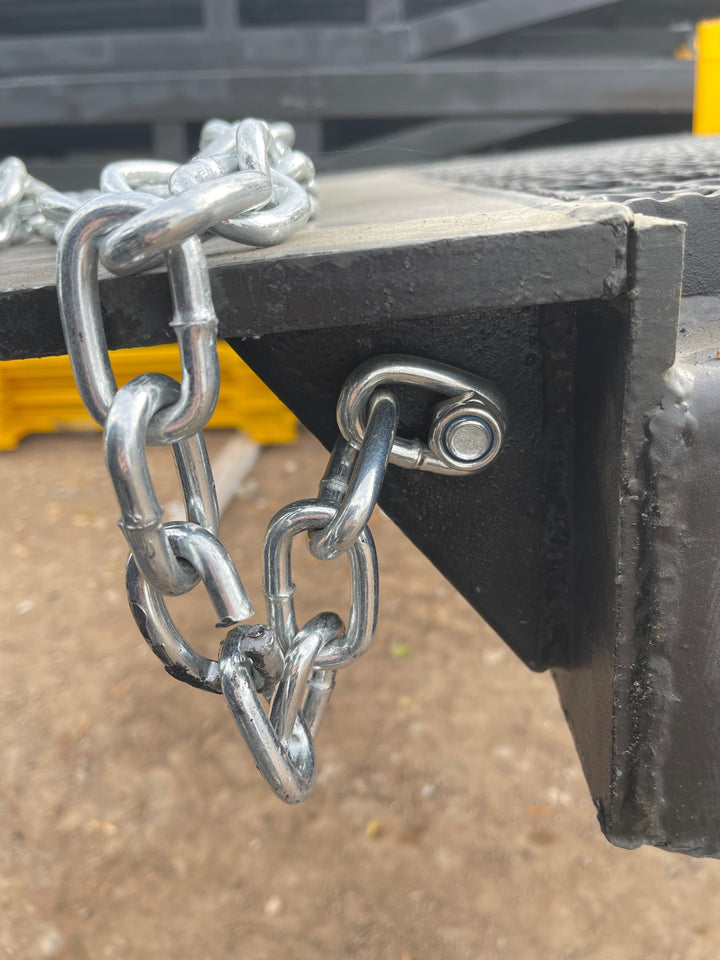

The surface of the ramp includes a middle diamond plated strip that is surrounded by serrated steel grating, which allows for snow, dirt, and debris to fall through, preventing dangerous build-up on the ramp (please note, the grated surface of this ramp is not designed for forklift turning maneuvers). Additional safety features include 11" tall side rails on either side to prevent forklifts from driving over the edges, and two safety chains to hold the ramp secure to the loading surface. The chains can be attached to a semi-truck trailer's ICC bumper to prevent the ramp from kicking out.

This yard ramp also includes a dual action hydraulic pump for smooth raising and lowering of the yard ramp. To use the pump, simply push the lever forward or back to raise the front and open the release valve to safely lower the ramp into position. The pump is conveniently stored internally for safety and protection.

  • USER FRIENDLY HAND HYDRAULIC PUMP
  • HEAVY DUTY I-BEAMS FOR SUPERIOR STRENGTH
  • SAFETY CHAINS FOR SECURE RAMP TO TRAILER CONNECTION
  • DROP DOWN LEGS FOR ADDED SAFETY
  • ONE PIECE FRONT LIP AND END PLATE SPECIFICALLY DESIGNED FOR 3 POINT FORKLIFT
  • POSITIVE STEEL MESH PROVIDES NON-SLIP SURFACE ALLOWS DEBRIS TO FALL THROUGH

USAGE GUIDELINES

Make sure that the truck and trailer you are going to use your yard ramp on is stopped and the wheels are chocked before attaching the ramp.

What type of yard ramps will I need? When choosing what type of yard ramp you will need you must know the combined weight of your heaviest forklift and the heaviest weight of any load it will carry. This will determine what weight capacity you will need. You will also want to know the width of the widest equipment that will be used on the ramp; the ramp should be 15 wider then the width of that equipment. If you plan on using the yard ramp for railcar use make sure that the ramp is wide enough to prevent the forklift from hitting the ramp curbs when it turns into the railcar. Also measure the railcar door openings to make sure the yard ramp will fit..

This yard ramp also includes a dual action hydraulic pump for smooth raising and lowering of the yard ramp. To use the pump, simply push the lever forward or back to raise the front and open the release valve to safely lower the ramp into position. The pump is conveniently stored internally for safety and protection.

Warranty

1 year warranty on manufacturer's defects only. Warranty does not cover wear and tear or paint damage from using ramp.

TECHNICAL SPECIFICATIONS

WEIGHT CAPACITY: 10 Tons (20,000 lbs)

DIMENSIONS: Usable Width 6’ 5”, Length 37’

MINIMUM HEIGHT: 43”

MAXIMUM HEIGHT: 67”

MATERIAL: Steel

GUARD RAIL HEIGHT: 11"

TIRES: Solid All Terrain 600-9mm
